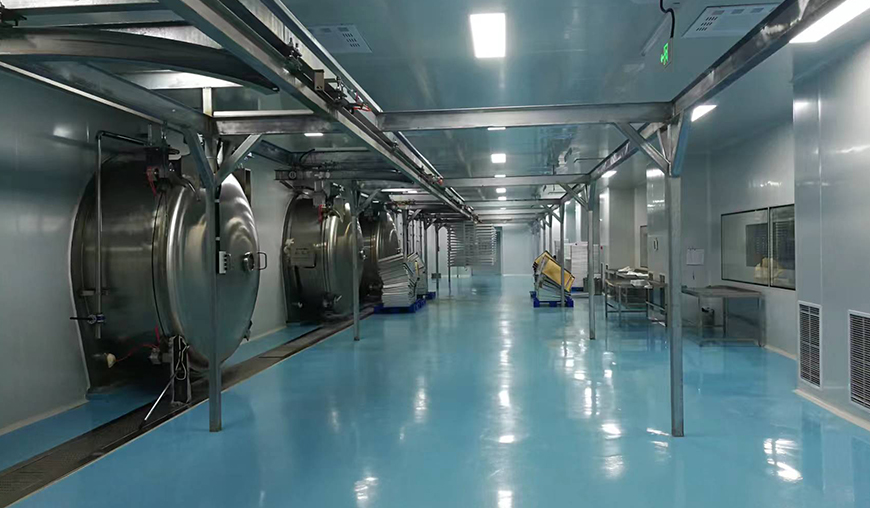

1. What Is a Freeze Dryer for Fruit?

A freeze dryer for strawberry, durian and mango is a vacuum drying system that

removes water from fruit by sublimation. The fruit is first frozen, then placed

in a vacuum chamber. Under low pressure, ice in the fruit turns directly into

vapor without passing through the liquid phase. The water vapor is captured

on a low-temperature condenser, leaving the fruit dry, porous and shelf-stable.

In the food industry, this process is also known as lyophilization.

A fruit freeze dryer is usually a batch or continuous system with:

• Insulated drying chamber with shelves or trays
• Refrigeration system for freezing product and cooling condenser
• Vacuum system to create low-pressure environment
• Heating system (shelf heating or radiation) for controlled sublimation
• Control system for temperature, pressure and time profiles

When correctly designed and operated, a freeze dryer for strawberry, durian and

mango maintains the original shape, color, aroma and nutritional profile of the

fresh fruit while achieving very low final moisture content.

2. Why Freeze Dry Strawberry, Durian and Mango?

Strawberry, durian and mango are high-value fruits with delicate structure and

strong consumer demand for premium dried products. Freeze drying provides several

advantages compared to hot air drying, sun drying or vacuum oven drying.

2.1 Main Benefits

• Excellent flavor retention: Low temperature prevents loss of

  volatile aroma components, crucial for aromatic fruits like durian and mango.

• Bright natural color: Minimal Maillard reaction and oxidation

  gives freeze-dried strawberry and mango a vivid, attractive appearance.

• High nutrient retention: Vitamins, antioxidants and bioactive

  compounds are better preserved compared to high-temperature methods.

• Crispy, light texture: Porous structure created by sublimation

  gives a crunchy, melt-in-the-mouth feel desired in snacks and cereals.

• Long shelf life: Final moisture content typically below

  3–5% and low water activity (a_w) inhibit microbial growth.

• Low shrinkage and deformation: Shape and size remain close

  to fresh fruit, especially important for premium snacks and decoration.

• Easy rehydration: Freeze-dried strawberry, durian and mango

  quickly rehydrate in water, milk or yogurt, maintaining original texture.

• Clean label: Often no added sugar or preservatives are needed

  when packaging and storage are properly controlled.

2.2 Application Benefits by Fruit Type

3. How Freeze Drying Works (Step-by-Step)

A freeze dryer for strawberry, durian and mango follows the same scientific

principles as pharmaceutical lyophilization, but is optimized for food.

The process is typically divided into four main stages.

3.1 Pre-Processing

• Sorting and grading fruit by size and ripeness
• Washing and, if required, peeling or coring
• Cutting into slices, cubes, halves or whole berries
• Optional pre-freezing in a blast freezer or tunnel freezer
• Optional dipping in antioxidant solution (e.g. for mango to reduce browning)
• Loading on trays or mesh belts with controlled product thickness

3.2 Freezing

Fruit pieces are frozen to a temperature below their initial freezing point

to ensure water in the cells is converted into ice. For a freeze dryer for

strawberry, durian and mango, the typical freezing temperature is between

-30 °C and -45 °C, depending on fruit type and sugar content.

• Fast freezing creates smaller ice crystals and helps preserve cell structure.
• Product temperature must be uniform across the tray for consistent drying.

3.3 Primary Drying (Sublimation)

In primary drying, the ice in the frozen fruit is removed under vacuum:

• The chamber is evacuated to a low pressure (e.g. 10–100 Pa).
• Shelf temperature is gradually increased but kept below the

  collapse temperature of the fruit matrix.

• Ice sublimates; water vapor moves to the cold condenser and refreezes.

The end of primary drying is when most ice is removed (typically 90–95% of

total water), and product temperature approaches the shelf temperature.

3.4 Secondary Drying (Desorption)

Secondary drying removes bound water molecules:

• Shelf temperature is raised further to drive off residual moisture.
• Pressure can be lowered further or kept constant depending on system design.
• Target moisture content for freeze-dried strawberry, durian and mango is

  usually below 3–5%.

After achieving the desired moisture level, the chamber is backfilled with

inert gas or filtered air, and trays are unloaded for packaging.

4. Comparison with Other Fruit Drying Methods

When choosing a drying technology for strawberry, durian and mango, it is helpful

to compare freeze drying with other common fruit drying methods.

A freeze dryer for strawberry, durian and mango is especially suitable for

premium applications, export markets and products where quality and sensory

attributes justify higher processing costs.

5. Typical Freeze-Dried Strawberry, Durian and Mango Products

The same freeze dryer can process strawberry, durian and mango into various

product forms by adjusting cutting size, pre-treatment and packaging.

5.1 Product Forms by Fruit

5.2 Downstream Applications

• Breakfast cereals and muesli products
• Snacks and trail mixes
• Chocolate bars and confectionery
• Ice cream and frozen dessert inclusions
• Beverage premixes and instant drinks
• Infant food and nutraceuticals
• Bakery and pastry decoration
• Catering, airline meals and emergency rations

6. Key Features of a Fruit Freeze Dryer

When specifying a freeze dryer for strawberry, durian and mango, certain

features have direct impact on productivity, operating cost and final

product quality.

6.1 Structural and Mechanical Features

• Chamber design: Cylindrical or rectangular, horizontal or vertical.

  Food applications usually prefer easy-clean, rectangular chambers.

• Shelf system: Multiple heated/cooled shelves with good

  temperature uniformity across all trays.

• Tray design: Food-grade stainless steel, perforated or solid

  trays depending on product form.

• Condenser capacity: Must match the maximum water load from

  strawberry, durian and mango batches to avoid overload.

• Refrigeration system: Single or cascade compressors capable

  of reaching condenser temperatures of -40 °C or lower.

• Vacuum system: Combination of rotary vane, screw or roots pumps

  to reach required ultimate pressure quickly.

6.2 Control and Automation

• PLC or industrial controller: For automated control of

  time-temperature-pressure profiles.

• Recipe management: Pre-programmed cycles for strawberry,

  durian and mango with adjustable parameters.

• Temperature sensors: Shelf and product temperature probes

  for precise monitoring.

• Vacuum measurement: Pirani and/or capacitance manometer

  for accurate pressure control.

• Data logging: Batch data recording for traceability and

  process optimization.

• Alarms: For high pressure, temperature deviation,

  refrigeration failure, door not closed, etc.

6.3 Hygiene and Cleaning Features

• Food-grade stainless steel contact surfaces (e.g. SS304 or SS316).
• Sanitary welds and rounded corners to minimize contamination.
• Clean-in-place (CIP) options for Large Industrial Freeze Dryers.
• Drainage design to avoid standing water in the chamber.
• Easy access doors or panels for manual cleaning.

6.4 Energy Efficiency Features

• Heat recovery systems between condenser and evaporator.
• Variable frequency drives (VFD) on vacuum pumps and compressors.
• Optimized insulation to reduce heat loss.
• Multi-stage drying programs to minimize time at high energy demand.

7. Recommended Process Parameters by Fruit

Optimized process parameters for a freeze dryer for strawberry, durian and

mango depend on fruit variety, cutting size, sugar content and desired final

moisture. The following values are indicative ranges for industrial practice.

For a freeze dryer for strawberry, durian and mango, it is critical to avoid

exceeding the collapse temperature of the fruit matrix during primary drying.

Excessive shelf temperature or too rapid pressure reduction can cause melting,

shrinkage, or texture damage.

8. Typical Technical Specifications

Different production scales require different capacities and configurations

of freeze dryers for strawberry, durian and mango. The following table shows

typical specification ranges for small pilot units and for medium to large

industrial units.

Actual specifications for a freeze dryer for strawberry, durian and mango

should be calculated based on desired throughput, moisture removal rate,

available utilities and plant layout.

9. Small-Scale vs. Industrial Fruit Freeze Dryers

The design of a freeze dryer for strawberry, durian and mango can vary greatly

from small craft production units to fully automated industrial lines.

9.1 Small-Scale or Craft Production

• Target users: farms, small food brands, test kitchens.
• Capacity: typically < 100 kg fresh fruit per batch.
• Advantages:

  • Lower initial investment.
  • Greater flexibility for different recipes and batches.
  • Easier installation and operation.

• Limitations:

  • Higher energy cost per kg finished product.
  • Longer cycle times relative to capacity.
  • Manual loading/unloading and cleaning.

9.2 Industrial-Scale Production

• Target users: large fruit processors, contract drying facilities,

  snack and ingredient manufacturers.

• Capacity: 100–3,000+ kg fresh fruit per batch or continuous systems.
• Advantages:

  • Economies of scale in energy usage and labor.
  • More precise control of process parameters.
  • Integration with pre-processing, packaging and logistics.

• Limitations:

  • Higher investment cost and longer lead time.
  • Requires reliable supply of strawberry, durian and mango.
  • More complex installation and utilities (steam, chilled water,

    compressed air, etc.).

10. Quality Control and Testing

A freeze dryer for strawberry, durian and mango must ensure stable, repeatable

quality across batches. Quality control covers both the process and the final

product.

10.1 In-Process Control

• Monitoring chamber pressure and shelf temperatures.
• Measuring product temperature at representative locations.
• Verifying condenser performance (frost layer, temperature).
• Recording energy consumption and cycle time.

10.2 Final Product Testing

11. Hygiene, Food Safety and Compliance

Any freeze dryer for strawberry, durian and mango must be designed, operated

and maintained according to food safety regulations and good manufacturing

practices.

11.1 Hygienic Design Considerations

• Use of approved food-contact materials and seals.
• Design that allows complete cleaning and inspection.
• Avoidance of crevices, dead zones and exposed insulation.
• Proper air filtration for any gases entering the chamber.

11.2 Typical Standards and Guidelines

Specific standards depend on the region, but a freeze dryer for fruit is

often expected to support compliance with:

• General food safety regulations (such as local food laws).
• HACCP-based hygiene management systems.
• Good Manufacturing Practice (GMP) principles.
• Industry guidelines for cleaning, sanitation and allergen control.

11.3 Operator Safety

• Interlocks to prevent opening the chamber under vacuum.
• Pressure relief and safety valves.
• Electrical safety and grounding.
• Clear operating procedures and training for workers.

12. Energy Consumption and Cost Factors

Freeze drying is energy-intensive. Understanding main cost drivers helps

optimize the design and operation of a freeze dryer for strawberry, durian

and mango.

12.1 Main Energy Consumers

• Refrigeration compressors for product freezing and condenser cooling.
• Vacuum pumps maintaining low pressure inside the chamber.
• Heating system supplying energy for sublimation and secondary drying.
• Ancillary systems such as controls and fans.

12.2 Factors Affecting Operating Cost

• Loading density: More fruit per tray increases efficiency

  but must not block vapor flow.

• Cycle optimization: Proper balance between temperature

  and pressure avoids unnecessary drying time.

• Product preparation: Uniform size and pre-freezing can

  reduce drying time.

• Equipment efficiency: Modern compressors, vacuum pumps,

  heat recovery and good insulation reduce energy usage.

12.3 Cost Balance for High-Value Fruit

Despite higher energy consumption, a freeze dryer for strawberry, durian and

mango can be economically attractive because:

• The product sells at a premium price in snack and ingredient markets.
• Losses from spoilage of fresh fruit are reduced.
• Year-round availability and export access improve revenue stability.

13. Buyer Checklist for Fruit Freeze Dryers

When investing in a freeze dryer for strawberry, durian and mango, it is

important to evaluate requirements from technical, economic and operational

perspectives. The checklist below provides a structured approach.

13.1 Capacity and Product Requirements

• Expected daily or monthly throughput for each fruit type.
• Target product forms (whole, slices, cubes, powders).
• Required final moisture and water activity levels.
• Desired packaging formats and shelf life.

13.2 Technical Specifications

• Necessary shelf area and number of trays.
• Required condenser capacity for water loading from strawberry,

  durian and mango batches.

• Ultimate vacuum pressure and control precision.
• Available utilities (electricity, steam, chilled water, compressed air).
• Space and layout constraints in the facility.

13.3 Operation and Maintenance

• Level of automation needed (manual, semi-automatic, fully automatic).
• Cleaning and sanitation frequency and methods.
• Operator training requirements.
• Planned maintenance schedule for vacuum and refrigeration systems.

13.4 Quality and Certification

• Compliance with relevant electrical and safety codes.
• Support for documentation required by food safety audits.
• Availability of test data on temperature uniformity and vacuum performance.

13.5 Economic Evaluation

• Investment budget and financing options.
• Estimated operating cost per kg of finished product.
• Expected payback period based on product pricing and volume.
• Scalability for future capacity increases.

14. FAQ on Freeze Dryers for Strawberry, Durian and Mango

14.1 Can one freeze dryer handle strawberry, durian and mango together?

Yes, a well-designed freeze dryer for strawberry, durian and mango can handle

all three fruits. However, it is usually better to process only one fruit type

per batch because they have different aroma characteristics and optimal drying

profiles. Separate batches avoid flavor cross-contamination and allow precise

control for each fruit.

14.2 How long does it take to freeze dry these fruits?

Total cycle time in a freeze dryer for strawberry, durian and mango is typically

between 12 and 30 hours, depending on:

• Fruit type and variety.
• Slice or cube thickness.
• Loading density on trays.
• Freezing method and pre-freezing temperature.
• Target final moisture content.

14.3 What is the typical shrinkage for freeze-dried fruit?

Compared to hot air dried products, shrinkage in a freeze dryer for strawberry,

durian and mango is minimal. Volume is largely preserved due to sublimation.

Some slight structural changes occur, but the product remains visually similar

to fresh fruit, especially for strawberry and mango slices.

14.4 How is freeze-dried fruit packaged?

To protect the low moisture, porous structure obtained from a freeze dryer for

strawberry, durian and mango, packaging should:

• Have low oxygen and moisture permeability (e.g. multilayer films).
• Often include oxygen absorbers for sensitive products.
• Be sealed under nitrogen or low-oxygen conditions when possible.

14.5 Is freeze drying suitable for organic fruit?

Freeze drying is highly suitable for organic strawberry, durian and mango,

because it typically requires no preservatives or added sugar. The process

is purely physical and can support clean label and organic market positioning.

14.6 Can freeze-dried fruit be ground into powder?

Yes. Because the structure from a freeze dryer for strawberry, durian and mango

is highly porous and brittle, it can be easily milled into high-quality fruit

powder. Such powders are widely used in beverages, bakery, confectionery and

nutritional products.
